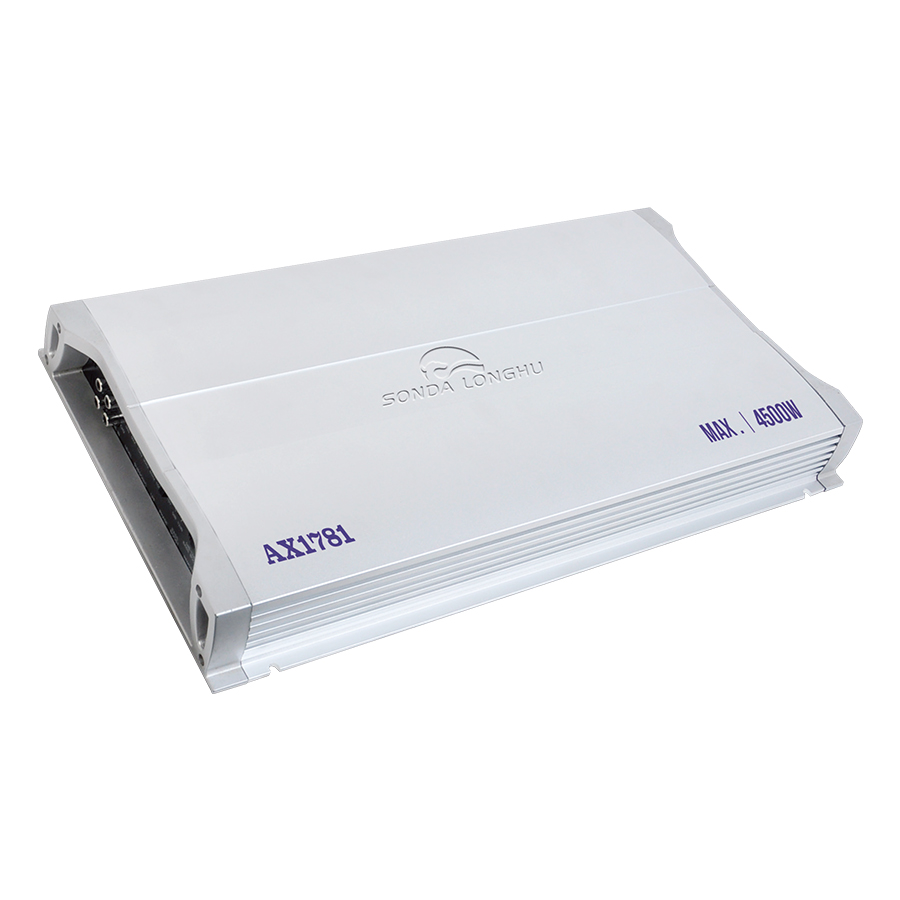

Amplifier
Power Output/Normal ModeSignal-to-Noise Ratio: 1700W RMS×1 channels at 1Ω and≤1%THD+N, 80dBA(reference: 1W into 4Ω)
Power Output Normal Mode Bridge Mode: 1000W RMS×1 channels at 2Ω and≤1%THD+N, 520W RMS×1 channels at 4Ω and≤1%THD+N
Maximum Power Output: 4000W×1
Load Impedance Normal Mode: 4Ω(1Ω to 2Ω allowance)
Frequency Response: 15Hz to 150Hz(+0dB,-3dB)
Input Sensitivity / Impedance: 180mV/10kΩ(0.1V to 6V, variable)
Bass Boos: Frequency 50Hz
Dlstortion: Less than 0.4%(at 1kHz)
Power Requirement: DC 14.4V
Grounding system: Negative ground
Dimensions(W×H×D): 460×535×258mm
Mass(approx.):6kg
Accessories: Screw φ4×15mm×2
